Connecting to PS5
  1. Use a data cable to connect Port ① (Type-C) to the PS5.
  2. Connect an Ethernet cable from the same router as the PS5 to Port ⑤ (Ethernet Port).
  3. Download the app and scan to connect the device. Switch the device to PS5 mode in the app and click Bind.
  4. Follow the app instructions for connection setup.

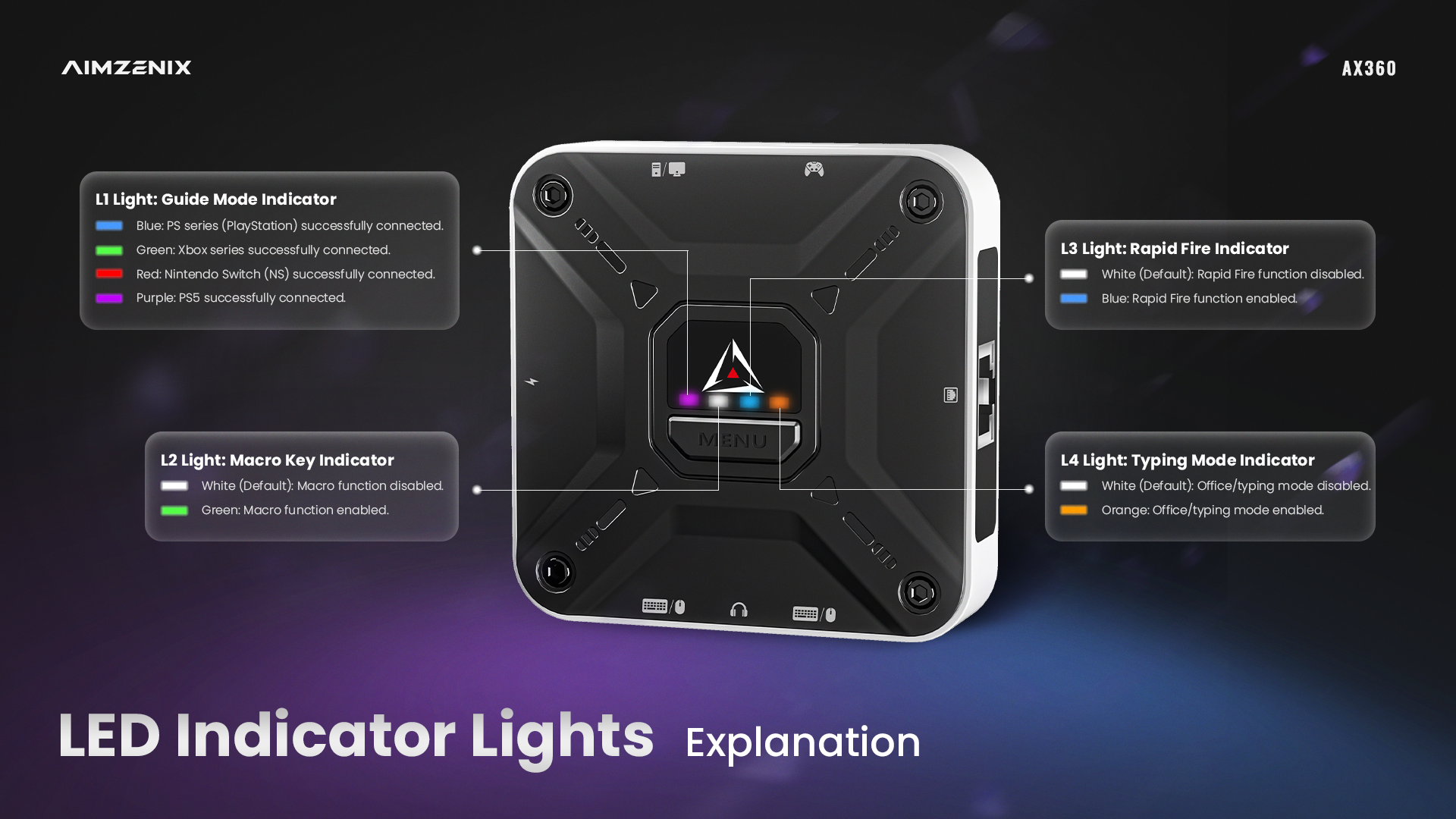

  5. Once connected successfully, L1 light will turn solid purple. Then, connect the keyboard and mouse to Ports ⑥ & ⑧. If using a 3.5mm headphone, connect it to Port ⑦.
  6. If connection issues persist, contact support via Discord: https://discord.com/invite/H4f6Bmetg.V
Connecting to PS4/PS3.
  1. Use a data cable to connect Port ① (Type-C) to the PS4.
  2. Connect the original PS4 controller to Port ② (Controller Port). The L1 light will turn solid blue upon successful connection.
  3. Connect the keyboard and mouse to Ports ⑥ & ⑧. If using a 3.5mm headphone, connect it to Port ⑦.
  4. Download and open the GEEKVICE app, scan to connect via Bluetooth for parameter adjustments.
  5. If connection issues occur, refer to the troubleshooting steps in the app.
CONNECTING TO Nintendo Switch

1.Device Connection：

  • Using the Dock:​​ Connect the AX360's Type-C port (①) to the Switch dock using a data cable.
  • ​​Not Using the Dock:​​ Connect an OTG adapter to the Switch's bottom Type-C port. Then connect the AX360's Type-C port (①) to the OTG adapter using a data cable.

2. App Connection:​​ Download the GEEKVICE app. In the [Console Connection Diagram], select the [Switch console] and switch to [Switch mode]. Alternatively, in the app, set the [Default Mode] to Switch.

When the L1 light turns solid red, the connection is successful.

3.Peripheral Connections:​​

Connect the keyboard and mouse to ports ⑥ and ⑧.

For a 3.5mm headphone connection, use port ⑦.​

4.Troubleshooting:​​

If connection fails, check the app's [connection steps] for troubleshooting solutions.​​​
CONNECTING TO Xbox 360/XONE/XSS
  1. Use a data cable to connect Port ① (Type-C) to the Xbox 360.
  2. Connect the original Xbox 360 controller to Port ② (Controller Port). The L1 light will turn solid green upon successful connection.
  3. Connect the keyboard and mouse to Ports ⑥ & ⑧. If using a 3.5mm headphone, connect it to Port ⑦.
  4. Download and open the GEEKVICE app, scan to connect via Bluetooth for parameter adjustments.
  5. If connection issues occur, refer to the troubleshooting steps in the app.

CONNECTING TO PC

Collapsible Row
  1. Use a data cable to connect Port ① (Type-C) to the PC. The L1 light will turn solid green upon successful connection.
  2. Connect the keyboard and mouse to Ports ⑥ & ⑧. If using a 3.5mm headphone, connect it to Port ⑦.
  3. Download and open the GEEKVICE app, scan to connect via Bluetooth for parameter adjustments.
  4. If connection issues occur, refer to the troubleshooting steps in the app.
